Small Studio

Müller Room

Downloads:

↓Technical information PDF
↓Ground and sectionnal plots DWG
↓Ground and sectionnal plots PDF

CAPACITY:

  • 150 seats
    including 6 removable (for wheelchairs)
    Watch out, the first row is at stage level

    • Dressing rooms:

  • 1 room for up to 14 people with 4 showers
  • 9 rooms for 3 people with showers
  • 1 costume assistant room
  • 1 break room 15m2 (with coffee, tea, water dispenser, fridge, microwave oven)

    • STAGE SPECS:

  • Woodfloor, painted oak (matte black)
  • Stage width: about 12,75m
  • Stage depth: 8,5m
  • Height to grid: 4,95m
  • Height to concrete beam above the stage: 4,3m
    • WATCH OUT: stairs upstage right leading to the dressing room corridor
    WATCH OUT: wheelchair access though the same door and corridor stage right as the loading dock.
    WATCH OUT: the corridor connecting the parking lot to the stage is narrowing in height at one point. Big set elements can be problematic.

    RIGGING and DRAPERY:

  • 16 flybars: 13 operated by 3 sliding motors; 3 operated by independant motors (above the audience)
  • Control booth behind the audience, windowless
  • 1 0,5m high permanent border
  • 8 legs, black velvet, 3,6m × 4,85m
  • 3 borders, black velvet, 12m × 0,7m
  • 1 border, black velvet, 12m × 0,5m
  • 1 traveler (composed of 2 black velvet halves) manually operated, usually upstage
  • PVC dance mat if needed (matte back/white)

    • LIGHTING:

  • 48 2kW ETC dimmers distributed stage left

    • SOUND:

  • FOH line array Metrix system with amps
  • 2 Sub SX with amp
  • 2 stage boxes with XLR, Speakon, RJ45: one stage left, the other one upstage right

    • All other equipments (lighting, sound, drapery, etc.) is listed in the dedicated tab, but dependant on availability.

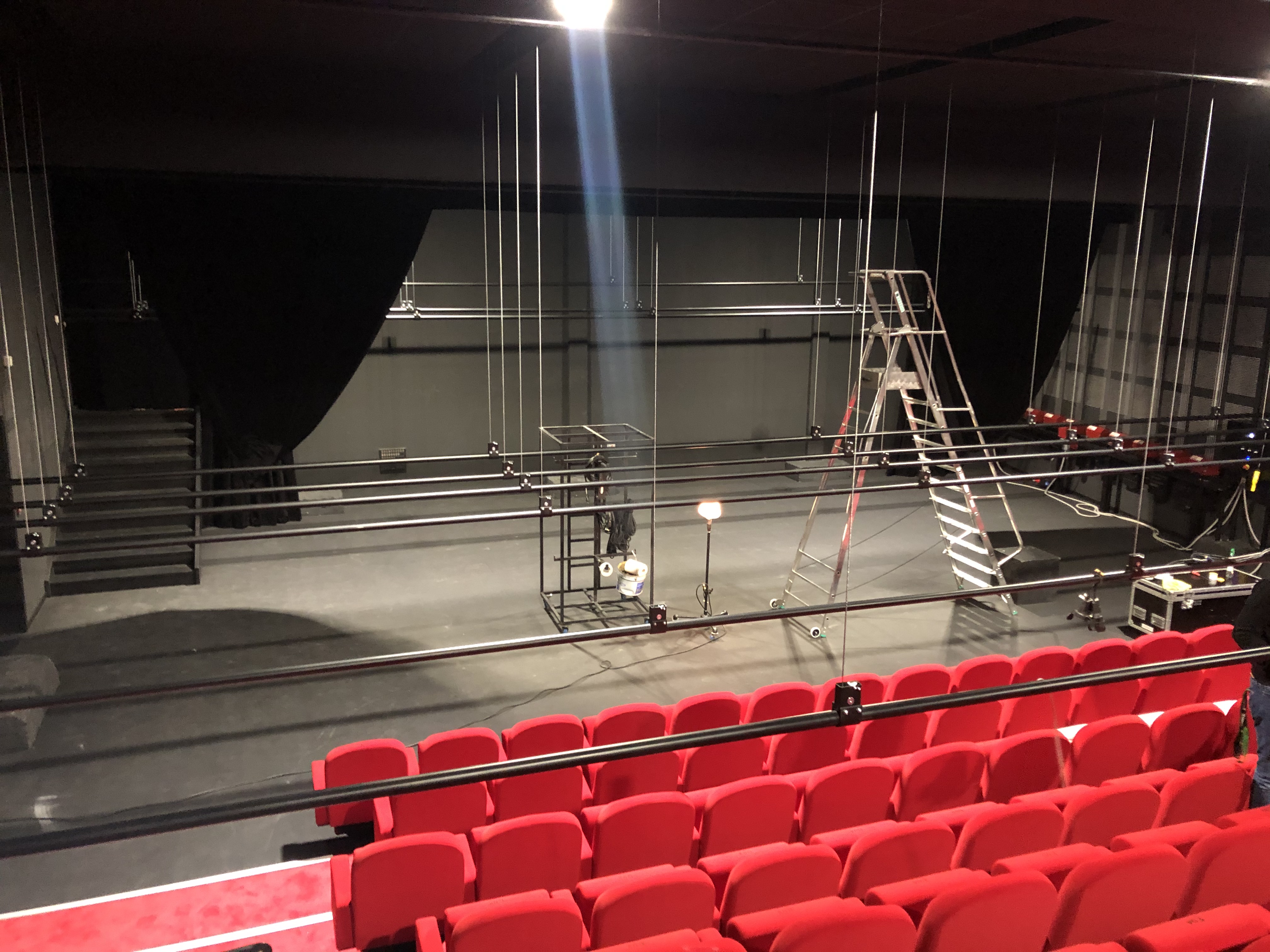

    Fly system under maintenance.

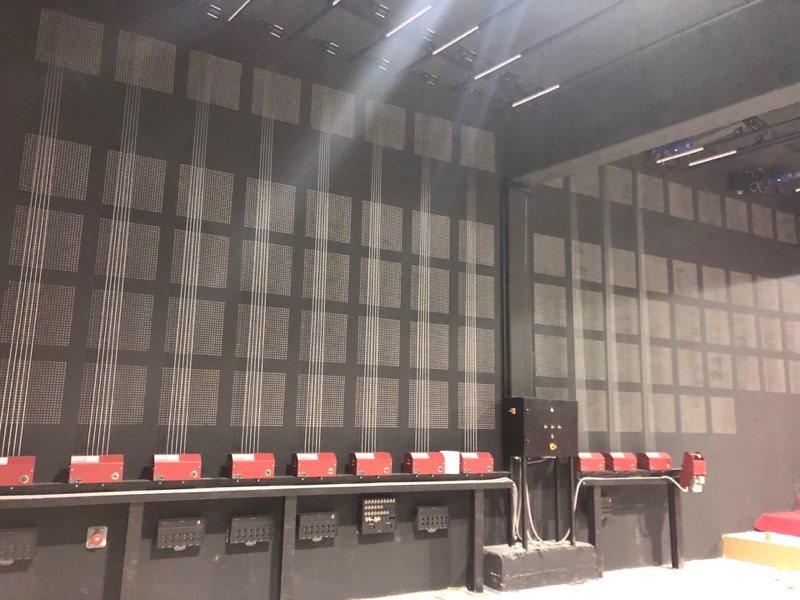

    Bare stage left wall.

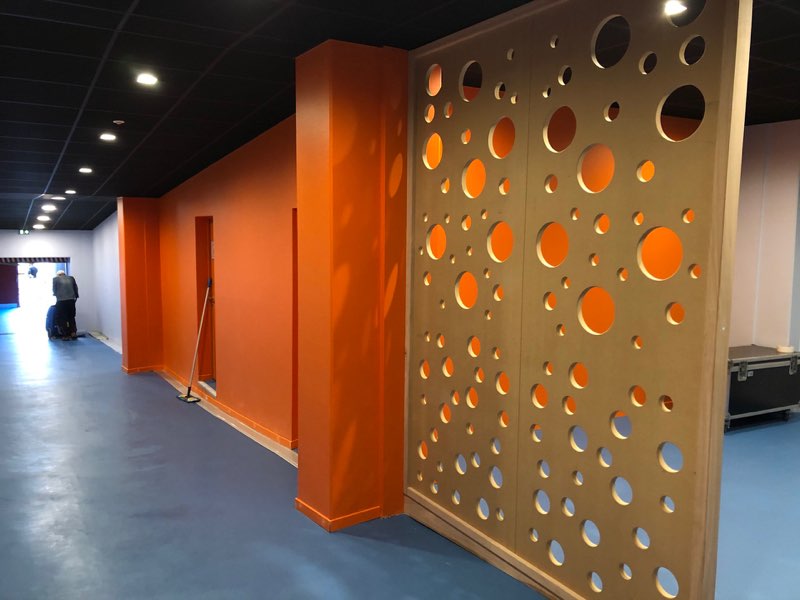

    Corridor between the stage and the parking lot.

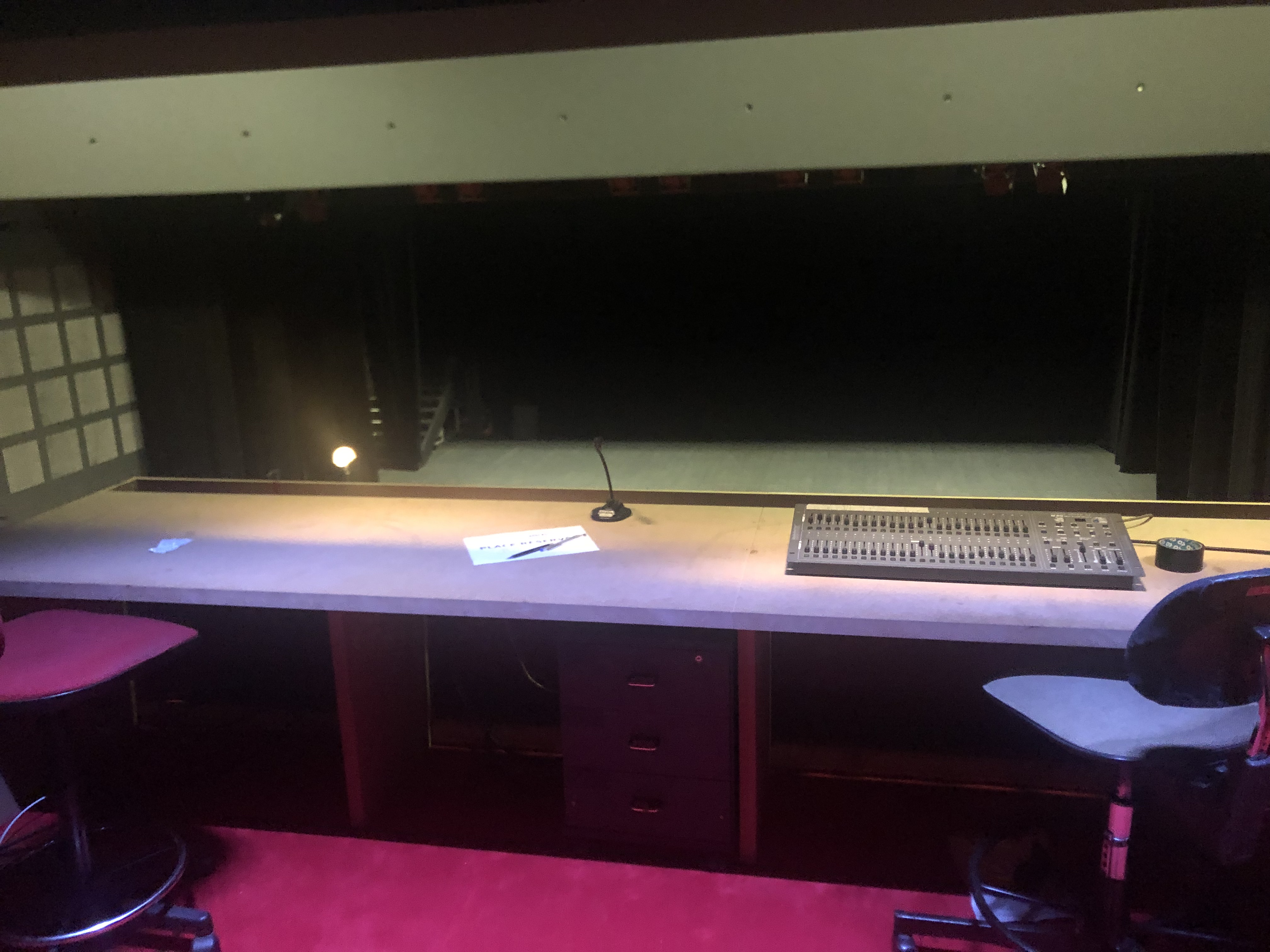

    Control booth.

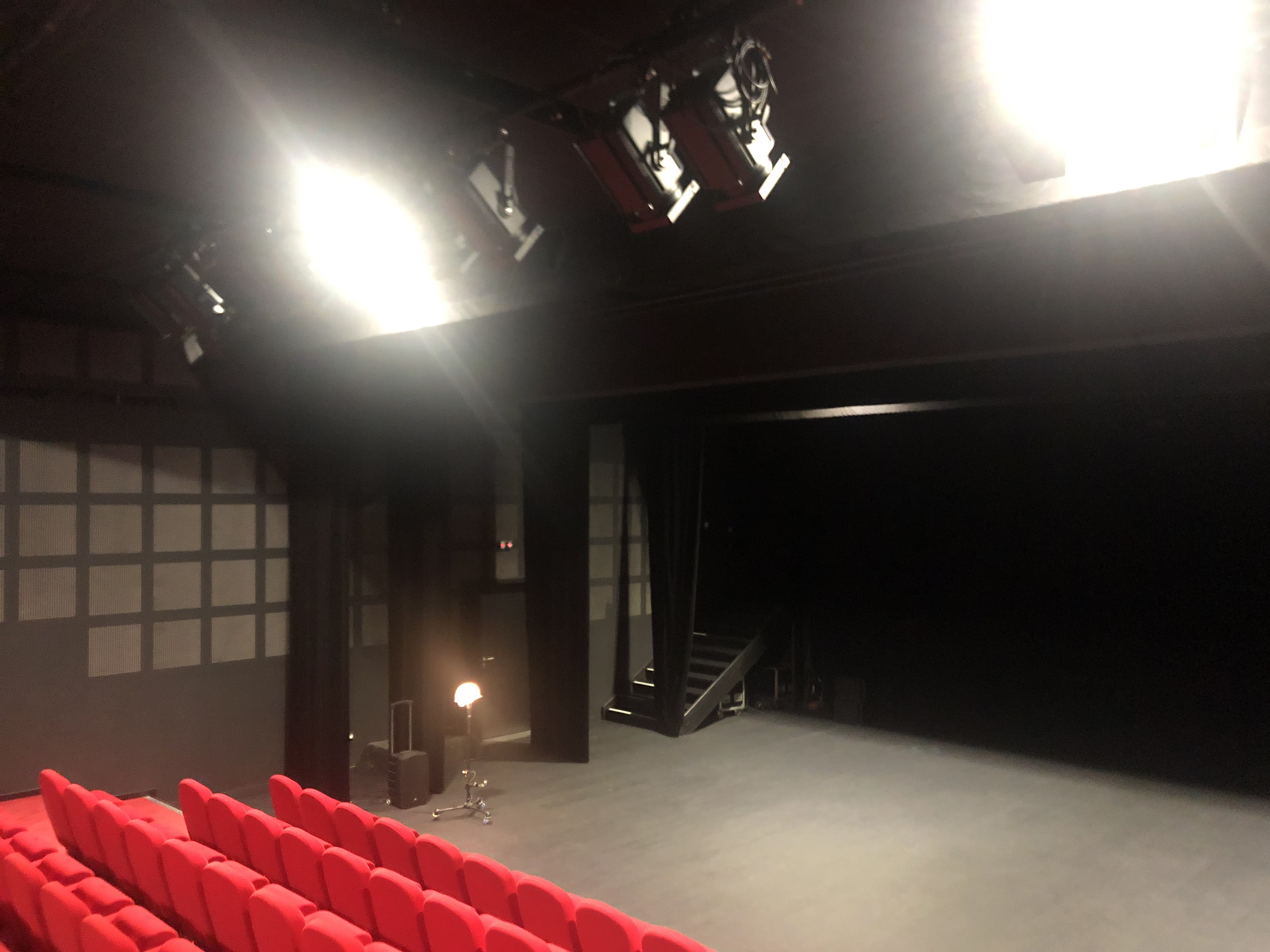

    Stage right with stairs leading to the dressing rooms.

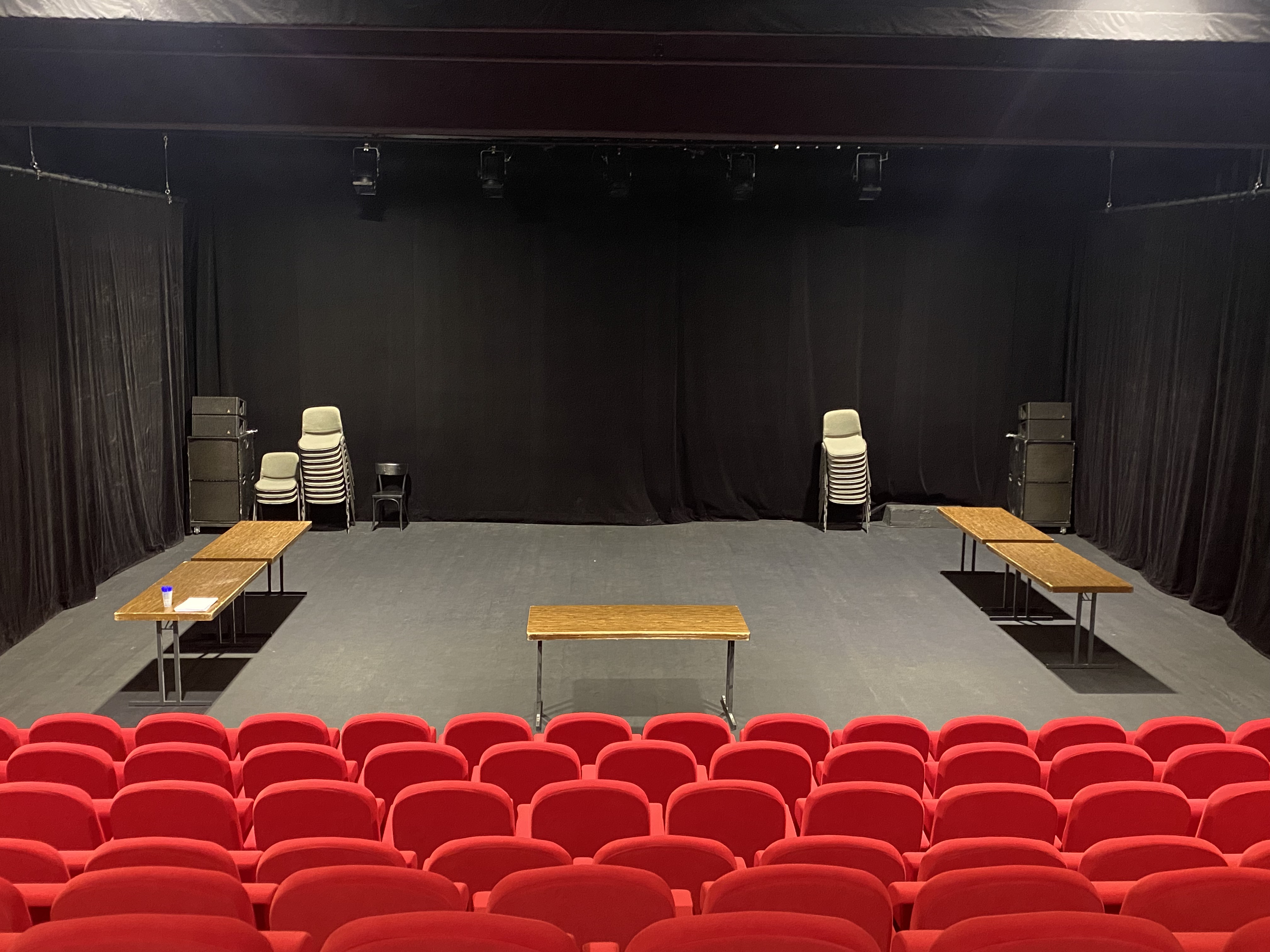

    Stage masking with box installation.
